Glass is a popular and eco-friendly packaging material used across various industries. People may wonder how glass bottles are produced. The manufacturing process of glass bottles involves several key steps：Materials Preparation, Batching and Mixing, Melting, Forming (Shaping Glass Bottles), Annealing, Checking Quality, Packaging and Storage, Raw Material Preparation. Now let’s delve into the detailed production process of glass bottles and the significance of each step.
1.Raw Material Preparation
Preparing the Raw Materials is the most important first step when making glass bottles. The choice and quality of these materials affect how strong, clear, and colorful the finished glass bottles will be.
Main Ingredients Used in Glass Bottle Production
Silica sand: This is the main part of the glass mix. You must use high-purity silica sand with over 99% SiO₂. This makes the bottles clear and strong.
Soda ash: This lowers the melting point of silica from about 1700°C to around 1500°C.
Limestone: Limestone makes bottles resist chemicals better. It also stops them from dissolving in water.
Cullet: I find that many modern plants use cullet from recycling places. For every 10% increase in cullet used, energy use decreases by 2-3%, and CO₂ emissions go down by 5%.
Minor additives Small amounts of additives adjust color or properties:
| Material | Purpose |
|---|---|
| Iron oxide | green glass |
| Chromium oxide | olive shades |
| Cobalt | blue hues |
| Alumina or boron | Used in special glass, like medicine containers |
Getting the mix right and doing thorough quality control at this stage greatly impacts how consistent, safe, and recyclable the final glass bottle is, in my view.
2.Batching and Mixing
Batching and mixing are key steps when making glass bottles. They help make sure raw materials are pure, exact, and consistent before melting. If we don’t batch correctly, it can lead to problems like flaws, bad color, and weak bottles.
Key Raw Materials for Glass Bottles
Silica sand: 62–74% of the batch
Soda ash: 12–16%
Limestone: 5–12%
Dolomite: 3–5%
Other minor additives: Alumina, iron oxide
Cullet (recycled glass): 15–30% of the batch in many plants
Mixing Technique and Batch Homogeneity
Raw materials are blended in large rotating drums or paddle mixers for 10-30 minutes to achieve uniform particle distribution while minimizing segregation risks. Batch consistency targets require sample variations below 1%. Some facilities incorporate water or binding agents (≤1% by weight) during mixing, which effectively reduces dust emissions and improves material flow properties. The homogenized mixture is stored in sealed silos or enclosed hoppers for periods under 24 hours prior to processing, with certain production lines utilizing a pre-melted intermediate stage referred to as “frit”.
3.Melting
The melting phase plays a critical role in glass bottle manufacturing, transforming raw materials into high-purity molten glass essential for consistent product formation. Industrial furnaces operate continuously at sustained temperatures, typically maintaining 1,500-1,700°C with optimal thermal efficiency achieved at 1,565°C (2,850°F). The viscosity of the glass melt needs to be stabilized at 10^2-10^3 Pa·s, which is a key rheological parameter for the molding process (such as blowing with an IS machine). A viscosity deviation of 0.5 orders of magnitude can lead to mold filling defects. Incorporating recycled cullet significantly reduces energy consumption by lowering required melting temperatures while ensuring material uniformity.
Modern facilities utilize large-capacity furnaces processing hundreds of metric tons weekly, combining 24/7 operation with precise temperature control to maintain stable viscosity and chemical composition. This continuous thermal process not only conserves energy through heat recovery systems but also ensures production continuity for reliable glass quality across manufacturing batches.
4.Forming (Shaping Glass Bottles)
In the forming stage, workers cut molten glass (around 1100°C) into exact pieces called gobs. Each gob usually weighs between 120 and 500 grams. The weight depends on the final bottle’s size and purpose. These glass gobs go straight to the forming machines.
Main Forming Processes

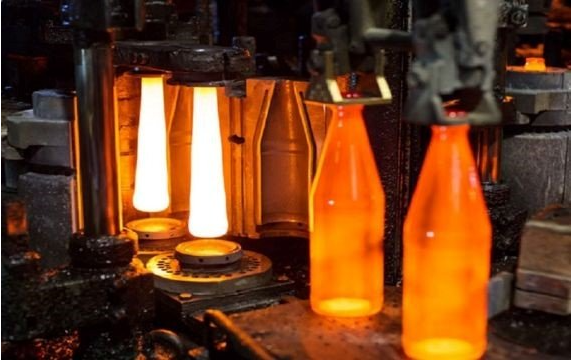

People often use this process for narrow-neck bottles. Think beer, wine, and soda bottles. The process begins when a machine drops a glass gob into a starting mold (the parison mold). Compressed air shapes it into an early form called a parison. Then, the machine moves the parison, flips it upside down (a 180° turn), and places it into the final mold. More compressed air blows the glass out to match the mold’s shape.
Narrow Neck Press & Blow (NNPB) Process
Many food, drug, and drink companies choose this method. They prefer it for making lighter bottles with very consistent shapes. A metal plunger pushes the gob into the parison mold. This action shapes the bottle’s neck and top edge with high accuracy. The weight difference in the finish kept under ±0.1 grams, which is quite exact. After that, compressed air makes the pressed parison take its final bottle shape.
The essence of the choice between the two processes lies in the dynamic balance of precision requirements, production scale and cost structure. Industry trends show that NNPB’s share in the high-end market is expanding at an average annual growth rate of 8%, while B&B still firmly holds the dominant position in the bulk commodity field through intelligent transformation.
5.Annealing
Annealing is a very important step when we make glass bottles. I believe it makes bottles strong and tough. This means they are less likely to crack when people use them, handle them, or ship them.
Annealing Process Overview
Entry Zone (Annealing Point)
Bottles are introduced into the hottest section of the lehr, where temperatures for soda-lime glass typically range between 550°C and 600°C. At this stage, the glass viscosity reaches approximately 10¹³ Poise, allowing internal stresses to rapidly dissipate. The bottles remain at this temperature for several minutes.
Cooling Down Slowly (Strain Point)
The temperature is gradually reduced beyond the strain point, typically within 500–525°C for soda-lime glass. At this stage, the glass viscosity measures approximately 10¹⁴.⁵ Poise. Controlled cooling speed is critical, as rapid temperature drops risk generating new internal stress points. During this phase, the glass structure stabilizes incrementally.
Cooling to Room Temperature
Bottles keep cooling down to room temperature. We control this cooling carefully.
Importance and Benefits of Annealing
Annealing stops bottles from breaking or shattering. This prevents problems caused by hidden internal stress. It also makes bottles better at handling bumps and quick temperature changes. Glass that isn’t annealed well can be up to 50% weaker. It also handles temperature changes much worse, or might crack without warning even from small impacts.
6.Checking Quality
Checking for quality is a very important step when we make glass bottles. I believe it ensures the bottles are strong, safe, and consistent. We check each bottle using machines and our eyes to make sure they meet tough industry rules.
Checking Bottle Size and Shape
- We measure important parts of the bottle: height, width, neck, and threads.
- Allowed size differences are small, typically ±0.2 mm to ±0.5 mm. This depends on the bottle’s size and what it’s for.
- Fast lasers or cameras check 30,000–40,000 bottles each hour on the line. I find this speed quite impressive.
Finding Surface Flaws
Machines use sharp cameras (up to 300+ pictures per second) to look for: Cracks over 0.3 mm, Bubbles larger than 0.2 mm across, Blisters (trapped air bubbles), Any bits of foreign material we can see. For top-quality glass, the goal is fewer than 1 flawed bottle for every 10,000 made.
Checking Thickness and Color
Gauges measure wall thickness without touching the bottle. We often reject bottles if the thickness varies by more than ±0.15 mm. This is important for strong bottles, like those for fizzy drinks. Sensors check the color by measuring light passing through. We reject bottles if the color shade is off by more than ±2% in how much light they absorb. For amber bottles that block sunlight, special sensors check specific light waves. This makes sure all batches block UV light equally well.
7.Packaging and Storage
We clean the final glass bottles completely after making them. Sometimes, we also sterilize them with steam or chemicals. Doing this removes anything harmful. It gets the bottles ready for safe packing or filling right away.
Glass Bottle Packaging Process
- Bottles move on their own from the production line to the packing stations.
- High-speed machinery packages thousands of bottles per hour.
- We use protective packing materials. Things like cardboard dividers, shrink wrap, or foam inserts help stop breaks and scratches when moving them.
I recommend storing glass bottles where it’s dry, cool, and dark. The best temperature is 10-15°C. Humidity should be 50-60%. In my view, this helps stop breakage from temperature shifts. It also protects labels from mold and damage.
summary
From my experience, glass bottles are excellent examples of eco-friendly packaging. They are made from natural materials. You can recycle them over and over. Importantly, they protect the contents inside without affecting the taste or quality. I see more people becoming aware of environmental issues. Because of this trend, I believe glass packaging will remain popular. It really showcases human cleverness. It respects the product itself and also looks out for our planet’s future.
