I’ve often looked at a glass bottle and wondered what goes into making it. It’s not just melted sand. Glass bottles are produced by melting silica sand, soda ash, limestone, and recycled glass (cullet) at ~1500–1600°C, with minor additives for color adjustment and durability. Let’s thoroughly examine the vital importance of these raw materials in glass bottle production.

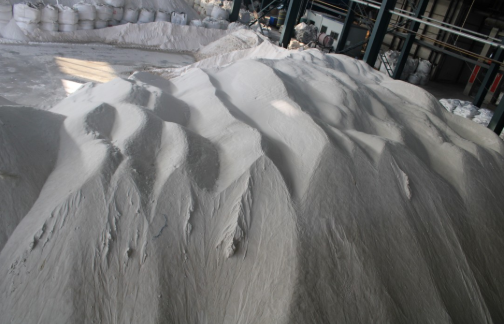

Silica
“As a materials scientist who studies glass making, I think silica is the most interesting part of manufacturing bottles. It creates the main structure of the glass. Silica usually makes up 70-74% of the glass mixture. Many people don’t know this, but how good and uniform the silica sand is impacts the glass’s strength, its clearness, and how it melts. The size of the sand grains is very important. If the grains are too fine, too much gas escapes during melting. If they are too coarse, the sand doesn’t melt well.
In my research, I’ve seen that the best glass makers precisely manage where they get their silica. They often choose specific mines that provide steady SiO₂ levels above 99.5%. For high-quality products, they also ensure iron oxide impurities are kept below 0.05%. Focusing on this main ingredient, silica, is what makes the difference between outstanding glass containers and ordinary ones.”
———— Dr. Elena Petrov , Professor of Materials Science at Cambridge University and Fellow of the International Glass Research Institute
Alkali (Soda)
In the manufacturing of glass bottle production, soda ash (sodium carbonate, Na₂CO₃) serves as the core alkaline component, and its role goes far beyond the simple fluxing function.
It reconstructs the glass network structure through a chemical reaction with silicon dioxide (SiO₂) at high temperatures – the melting point of quartz sand originally exceeded 1700°C, but when sodium carbonate was introduced, sodium ions would embed into the silicon-oxygen tetrahedral network, weakening the strength of the Si-O bond and significantly reducing the melting temperature of the mixture to around 1400°C.This thermodynamic effect not only directly reduces the energy consumption of the kiln (about 1.2-1.5 GJ per ton of liquid glass), but also extends the service life of refractory materials in the furnace, as continuous high temperature accelerates the erosion of the furnace lining.
In a typical sodium-calcium glass formula, the proportion of soda ash is approximately 12-18%, and its precise ratio directly affects the viscosity curve of the melt: when the Na₂O content increases from 13% to 15%, the viscosity of the glass liquid at the molding temperature can be reduced from 10^3 Pa·s to 10^2.7 Pa·s, significantly improving the fluidity during blow molding.
It is worth noting that approximately 30% of the sodium source in modern processes comes from recycled crushed glass (cullet), which not only reduces the consumption of primary soda ash but also lowers CO₂ emissions by about 15% (as the carbon dioxide produced from the decomposition of sodium carbonate can be partially recycled). Therefore, the application of soda ash is essentially a precise balance between reducing energy consumption, improving processing performance and maintaining product durability. The control of its dosage and reaction conditions directly determines the economy of the production line and the stability of product quality.
Stabilizers
Calcium carbonate (CaCO₃), predominantly sourced from limestone, constitutes 10-15% of standard soda-lime-silica glass compositions, providing calcium oxide (CaO) for improved structural integrity and environmental resistance. Magnesium oxide (MgO), typically introduced through dolomite (CaMg(CO₃)₂), supplements these properties by enhancing melt workability and chemical stability.
Aluminum oxide (Al₂O₃) additions below 2% increase hardness and inhibit devitrification during cooling processes. While barium oxide (BaO) and zinc oxide (ZnO) find specialized applications for modifying optical or chemical characteristics, calcium and magnesium oxides remain predominant in commercial glass bottle production. These stabilizers collectively ensure maintained container performance under mechanical stress, moisture exposure, and chemical interactions throughout filling, distribution, and consumer use cycles.
Coloring Agents
Coloring agents are metallic oxides or compounds added in small quantities to the glass batch during manufacturing to impart specific colors to the finished bottles. The choice of agent and its concentration decisively determines the final appearance and can also influence functional properties, such as filtering ultraviolet (UV) light to protect sensitive contents like beer or certain pharmaceuticals.
Principal Coloring Agents and Their Effects
Different metal oxides produce distinct colors when dissolved in the glass matrix:
| Colorant | Usage |
|---|---|
| Iron Oxides (FeO, Fe₂O₃) | Ferrous state (FeO): Produces bluish-green color (‘Georgia green’).Ferric state (Fe₂O₃): Yields yellowish-green to brown colors under oxidizing furnace conditions.Combined with chromium and specific redox conditions, used for amber glass (beer bottles, UV filtering). |
| Chromium Oxide (Cr₂O₃) | Produces various shades of green.Higher concentrations yield very dark green, almost black glass.Used with tin oxide and arsenic for vibrant emerald green. |
| Cobalt Oxide (CoO) | Produces intense blue glass in small amounts (0.025%-0.1%).Used for distinct blue appearances or as a decolorizer to counteract yellowish tints. |
| Copper Oxide (CuO/Cu₂O) | Cupric oxide (CuO): Produces light blue or green hues.Cuprous oxide (Cu₂O): Creates red (ruby) glass under reducing conditions, often with other elements like tin. |
| Manganese Dioxide (MnO₂) | Known as “glassmaker’s soap” for decolorizing glass by oxidizing iron.Larger amounts produce purple or amethyst colors, depending on oxidation state. |
| Nickel Oxide (NiO) | Produces blue, violet, grey, or black colors depending on concentration and base glass composition.Yields purplish tints in lead crystal and used with cobalt for decolorizing. |
| Cadmium Sulfide (CdS) | Produces a deep yellow color.Combines with selenium to create oranges and reds. |
| Carbon and Sulfur Compounds | Combined with iron under reducing conditions to create amber glass.Polysulfides cause brown colorations effective at blocking UV and blue light.Shades range from light yellowish-brown to nearly black. |
Decolorizing Agents
Decolorizing agents neutralize undesirable coloration in glass, specifically addressing the greenish hue originating from iron oxide impurities (Fe²⁺/Fe³⁺) present in silica sand. These additives enable production of optically clear “flint” glass by counterbalancing chromatic distortions.
Primary Decolorizing Agents and Their Use
- Selenium (Se): The primary decolorizer in soda-lime-silica systems, selenium introduces a faint pink tint to optically neutralize green wavelengths caused by ferrous iron (Fe²⁺). Typical dosage ranges from 0.8 ounces per ton of sand.
- Cobalt Oxide (CoO): Frequently combined with selenium, cobalt oxide imparts a complementary blue hue to counteract residual yellow discoloration from ferric iron (Fe³⁺) or selenium’s chromatic byproducts. The synergistic interaction achieves near-neutral transmittance.
Common Decolorizing Agents
Effective decolorization in flint glass bottle production manufacturing critically depends on precise selenium-cobalt formulations, ensuring chromatic compensation across visible light spectra while maintaining chemical compatibility with base glass constituents.
Fining Agents (Clarifiers)
Fining agents (clarifiers) play a vital role in glass bottle production by eliminating trapped gas bubbles from molten glass. These additives decompose at high temperatures, releasing gases that purge imperfections while maintaining melt homogeneity.
Common Fining Agents Used in Bottle Glass
Sodium Sulfate (Na₂SO₄) or Potassium Sulfate (K₂SO₄): Widely used in soda-lime-silica glass (bottles, float glass), sodium sulfate (“salt cake”) dominates due to cost-effectiveness and predictable performance. At temperatures exceeding 1200°C, it breaks down into sulfur dioxide and oxygen, effectively removing small bubbles.
Arsenic Oxide (As₂O₃) and Antimony Oxide (Sb₂O₃): Historically used for oxygen release, arsenic oxide faces reduced adoption due to toxicity. Antimony oxide serves as a safer alternative but still sees limited modern use in standard glass bottle production.
Tin Oxide (SnO₂): Reserved for specialty glasses requiring precise redox control, tin oxide releases oxygen at extreme temperatures. Its higher cost restricts application compared to sulfate-based options.
Sodium Chloride (NaCl) or Other Halides: While sodium chloride’s volatility aids bubble removal, furnace corrosion and emission risks limit its practicality in large-scale operations.
Cerium Oxide (CeO₂): Primarily used in technical or optical glasses, cerium oxide combines fining with UV-absorption properties, but remains uncommon in mainstream container glass manufacturing.
For most commercial bottle glass, sodium sulfate remains the standard choice, balancing performance, cost, and industry familiarity. Alternative agents are typically reserved for niche formulations or specific technical requirements.
Other Additives
Beyond the primary components like silica, soda, lime, alumina, and colorants/decolorizers, various other additives can be incorporated into the glass batch to modify specific properties or aid in the manufacturing process. These materials are often used in smaller quantities but can have significant impacts on the final product’s performance, appearance, or suitability for particular applications.
Modifiers for Specific Properties
Zinc Oxide (ZnO): Can improve chemical resistance, lower thermal expansion, and enhance UV absorption. It’s sometimes used in pharmaceutical glass or cosmetic containers.
Boron Oxide (B₂O₃): Introduced typically as borax or boric acid, boron oxide is the key ingredient in borosilicate glasses (like Pyrex®). While not standard for typical beverage bottles, small amounts might be added to soda-lime glass to improve thermal shock resistance or chemical durability for certain applications, or it forms the basis for pharmaceutical vials requiring high resistance.
Lead Oxide (PbO): The defining component of lead crystal, lead oxide significantly increases density, refractive index (creating sparkle), and workability of the glass. Due to health concerns, its use is now heavily restricted, especially for food/beverage containers, and it’s not found in standard glass bottle production .
Fluorine (F): Often added as fluorspar (CaF₂), fluoride can act as a flux (lowering melting temperature) and as an opacifying agent, creating milky white opal glass used for decorative or lighting purposes. Not typically used for standard transparent bottles.
Phosphorus Pentoxide (P₂O₅): Can be used to create opal glass or influence certain optical properties. Bone ash (calcium phosphate) is a traditional source.
summary
The creation of glass bottles represents a remarkable fusion of science and artistry, transforming ordinary materials into functional containers through precise material engineering. When handling a glass bottle production, one interacts with centuries of refined craftsmanship and chemical innovation, where elemental earth materials meet human ingenuity.
