Although glass bottles are durable, they are fragile during transportation due to impact, vibration and improper handling. Damage not only leads to economic losses, but may also cause product contamination and delays. Alleviating this challenge requires a strategic approach to addressing packaging design, material selection and logistics agreements.
By optimizing the cushioning materials, ensuring the glass bottles are aligned, and adopting shock-absorbing packaging solutions, enterprises can significantly reduce the breakage rate, keep the products intact, and minimize waste and costs to the greatest extent.
The reasons why glass bottles break during transportation
To solve a problem, one first needs to know the cause of the problem
Physical shock and collision
Even a very small collision, drop or vibration can damage the bottle. This may cause the bottle to shatter, break or break completely.
Uneven packaging
If the goods are not packaged to distribute the weight, they will shift. This kind of movement makes the bottles more likely to collide with each other, causing the bottles to break.
The thinness and design of the glass bottles
Use lighter and thinner bottles to reduce costs. Although it does reduce transportation costs, it also increases the risk of damage because the glass bottles are not as strong.
Temperature change
Sudden or drastic temperature changes can cause tiny cracks on glass bottles. This is very common in air travel or when goods pass through different climate zones.
Vibration
Continuous vibrations from trucks, trains or planes can cause stress points and micro-cracks. This makes the bottle more prone to breakage, even with seemingly minor impacts.
I think understanding these reasons is an indispensable first step. It helps us find practical ways to reduce losses. It also helps us ensure that the products remain intact throughout the entire transportation process.

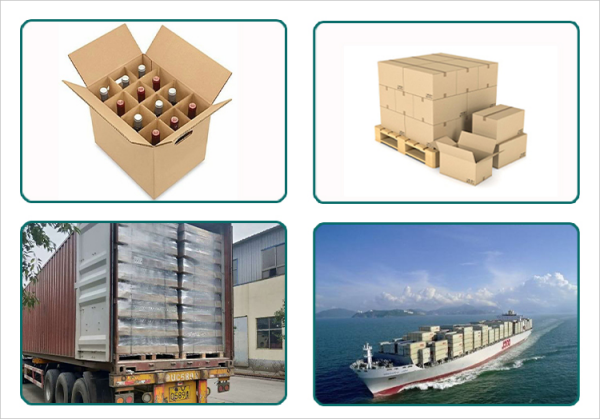

Packaging Solutions and Materials
Glass bottles are prone to breakage without special packaging. To solve this problem, industry insiders have begun to use better packaging materials, adopt new methods to protect items, and come up with new ideas. These changes help to reduce bottle breakage and financial losses.
Advanced glass bottle packaging materials
We often use special protective materials to transport glass bottles nowadays:
-Custom-molded inserts are made using expanded polystyrene (EPS). Compared with simple cardboard separators, these can reduce damage by up to 37%.
-Pulp molded fibers and corrugated separators are also good choices. They can absorb shocks.
Effective protective packaging technology
-Foam sleeves made of polyethylene. These MATS are respectively placed on each bottle.
-Bubble wrap can provide strong protection. It is particularly useful for long trips.
-For more valuable items, kraft paper packaging can be used. This helps prevent scratches and reduces minor damage during handling.
Innovation in packaging technology
New technologies have provided us with new materials and methods to protect goods. I think this is a great progress:
-The air column buffer can absorb shock up to 40G. This can protect the bottles even if they fall heavily.
-Biodegradable foam based on corn starch. It has a protective effect like old foam, but is better for the environment.
-Smart packaging with an integrated impact indicator enables shippers to immediately see if the package has been handled improperly.
-Recycled pulp molded packaging. Its protective effect is almost as good as that of new materials (with a difference of only about 5%), and it is more environmentally friendly
How to Control Environment and Monitor Shipments to Reduce Broken Glass Bottles
To prevent glass bottles from breaking during transportation, I think the key is to control the environment well and use good monitoring methods. Based on what I have seen, closely monitoring factors such as temperature, humidity, vibration and movement does indeed help ensure the safety of the product.
Temperature and humidity control
Glass bottles, I found that when they are filled with liquid, if they are exposed to very hot or cold temperatures, or high humidity, they will break. Rapid temperature changes often occur. This might occur during air travel or when goods pass through different weather areas. These changes will cause small cracks and make the bottle more fragile. I strongly recommend using temperature-controlled vehicles. It is also a good idea to check the temperature and humidity regularly during the journey. Even a very small change in temperature can damage the product. This is a big problem for beverages and medicines.
Impact and tilt indicator
During transportation, rough handling, violent impact and tilting often cause damage to the items. Use vibration and tilt detection equipment on your goods. These devices can help you identify these risks more quickly. These indicators will tell you whether the package is shaking too severely or has been accidentally hit. This information helps shippers and carriers understand the time and place when rough handling occurs. If you use these indicators and good packaging, you can reduce damage by up to 30%. This means that you have saved a large sum of money.
Vehicle suspension and vibration control
It is also very important to choose the appropriate means of transportation. Trucks equipped with air suspension systems can withstand the vibrations and bumps on the road surface. Studies show that compared with ordinary trucks, these systems can reduce shaking by more than 50%. Therefore, fewer bottles were broken during long trips.
Safety constraints and restricted activities
Preventing bottles from moving on containers and trucks is a good way to prevent them from colliding with each other and breaking. I suggest using straps and weight-bearing restraints in the vehicle. These can firmly fix the package. When a truck makes a sharp turn or brakes suddenly, even the slightest movement can cause the bottle to break or break completely. This step is very important for expensive goods.
Real-time tracking and data recording
The real-time tracking system can provide the latest location information. They also record environmental data, such as temperature, humidity and shock levels. If the situation exceeds the safe range, this information can enable you to take immediate action. Many companies reduced their losses because they took prompt action when tracking data indicated problems. I think this step is of vital importance. It helps maintain product quality and keep customers’ trust in your business.
I believe that by establishing strong environmental control, using modern monitoring tools, and choosing the right vehicles, your business can reduce the frequency of glass bottle breakage. This will save your money and make your customers more satisfied.
Suggestions for preventing glass bottles from breaking
To reduce the chance of glass bottles breaking during transportation, I recommend some reliable best practices and additional safety measures. Based on my experience, these steps are helpful in addressing common causes of damage. The method they used has been proven to achieve good results in actual transportation.
Key packaging techniques for transporting glass bottles
Each bottle is packaged separately:
I suggest that you pack each glass bottle separately. Use foam packaging or cushioning pads such as foam pads. This can prevent the bottles from colliding with each other, which is the main reason for the bottles to break.
Fill in all the blanks:
I suggest you fill all the blanks in the box. Use corrugated cardboard, foam or other shock-absorbing materials. When the bottles cannot move within the box, it greatly reduces the possibility of them colliding with each other during transportation.
Add buffers under and around the bottle:
I suggest placing shock-absorbing materials on the bottom and sides of the box. Using foam pads or shock-absorbing trays can effectively protect bottles from collisions and drops.
Methods for transporting and handling glass bottles
Choose a vehicle with air suspension:
Industry research shows that compared with conventional suspensions, the vibration of these vehicles is reduced by 66%. This obviously reduces the number of broken bottles during transportation.
Handle with care during loading and unloading:
Don’t pile the heavy packages on the boxes with glass. Put the goods in the vehicle and use straps or restraints to prevent them from moving and jolting, as this is a common way for bottles to break.
Observe and control the environment
Monitor and control temperature and humidity:
Keep track of and manage the temperature and humidity throughout the entire transportation process. Sudden changes, such as moving between different weather areas or traveling in the air, can weaken the glass. This is very true for full bottles or items that may go bad.
Install shockproof and tilt indicators:
It is very useful to indicate shockproof and tilt indicators on the packaging. These tools show whether the package has been roughly handled or discarded, and they will perform these operations immediately. This enables you to take steps to solve any problem. The use of impact indicators can reduce the damage rate of the observed goods by 15%.
The best methods for storage and stacking
Store in as single layers as possible:
In my opinion, it is best for glass bottles to be single-layered and placed in containers. Make sure there is enough space between them and use foam inserts as separators. Unless special partitions or additional buffers are used, try to avoid stacking multiple layers. These can help disperse the weight and absorb any vibrations.
Track your goods and obtain insurance
Use real-time tracking:
I suggest using GPS or RFID for tracking. This will provide you with real-time updates on all your goods. By observing them, if any problems arise, you can take prompt action. This enhances security and reduces your financial risks.
Insurance loss:
Your glass bottle transportation is fully insured. Even if you do your best, some accidents still cannot be avoided. If a loss occurs, insurance can ensure that you are financially protected.
According to the data, following these best practices can reduce the breakage rate of glass bottles to 0.5% per 1,000 units. This represents a significant improvement compared to the average level of 2-5% that I saw when people did not take these preventive measures.
My view on broken glass bottles: Numbers and lists
Key figures: Funds and operations
Global annual loss
As far as I know, glass transportation damage causes approximately 4.7 billion US dollars in losses each year, with an average of 3,777 US dollars for each loss claim.
For goods that are less than truck-load capacity (LTL), one in every 51 unfortunately suffers damage. I think this is a critical point.
In the global glass manufacturing market worth 235.8 billion US dollars (data from 2023), the proportion of losses caused by transportation damage each year is as high as 2%. In my opinion, this is an important number.
Damage: Past and present
Back in 1940, I observed that the average breakage rate of 186 American bottling plants was 3%. The current loss rate varies depending on the mode of transportation and container type.
Railway (using dedicated containers) : 0.8% of the product quality was lost due to damage.
Automobiles (using universal containers) : Loss of 1.0% of product quality.
Water transportation (using wooden containers) : Product quality loss of 1.5%.
Take a look at the economic loss rate:
The loss caused by damage during transportation is equivalent to 0.6% of the product price. The loss during storage is 0.25% of the product price.
Views on the main risk factors of breakage
The influence of transportation methods and containers on crushing:
I found that the mode of transportation of the goods (railway, truck or ship) and the type of container used (special, general, wooden) significantly affected the frequency of damage occurrence.
I think the loss rate of wooden and general containers is higher than that of special containers. This is a pattern that I have seen.
Luggage and air travel
Surprisingly, in 2024, I saw that over 49% of luggage complaints were about damage. Glass bottles are common items affected. Among checked luggage, wine bottles face particular risks. This is due to the rapid change in temperature and a large amount of vibration during the flight.
These key figures and risk factors indicate that we urgently need better ways to transport glass bottles. I suggest focusing on how to pack for them and how to plan their journey.
Summary
The commitment to reducing damage can not only cut costs and waste but also enhance brand reliability, which is a key advantage in industries where product integrity and sustainability are of Paramount importance. Work with logistics experts to ensure that these strategies are translated into long-term and resilient supply chains.
